MODEL NO: 5XW-40
Product advantages:
1. It can be overlapped with the cleaning roller of the cleaning machine to reduce the drop and intermediate links. Large capacity and high efficiency.
2. The chain roller conveying method can make the sorted materials clean without kara and dirt.
3. The upper layer is controlled by frequency conversion, the lower layer can be conveyed in both directions, and the upper layer can be moved back and forth.
4. The sorting platform can keep the equipment level with the ground through the adjustment of four support legs, which can reduce the collision between materials.

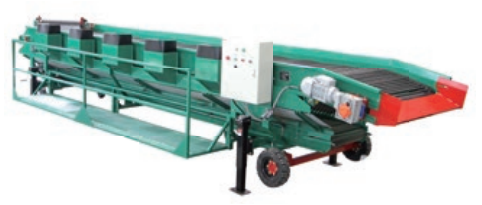

5XW-40 Sorting platform |
||
Overall dimension(length×width×height) |
mm |
7700*2546*(1345-1700) |
Machine weight |
kg |
1900 |
Maximum processing capacity |
t/h |
40 |
Main motor power |
kW |
1.5 |
Debris Motor Conveying Power |
kW |
0.75 |
